Printed circuit board assembly (PCBA) is the critical process that converts a bare printed circuit board (PCB) into a fully functional electronic module. In today’s electronics-driven world, PCBA serves as the backbone of countless devices—from consumer electronics like smartphones and wearables to industrial control systems, medical devices, and automotive electronics.
Understanding how to assemble a PCBA board is essential for engineers, designers, and procurement specialists who aim to ensure product quality, reliability, and efficiency. The process requires careful planning, precise execution, and rigorous quality control at every stage. Proper attention to detail during each step can prevent common issues such as soldering defects, component misalignment, or functional failures. This article provides a detailed, step-by-step guide on how to assemble a PCBA board, along with additional considerations, challenges, and best practices to optimize production outcomes.
1. Understanding the Basics of Printed Circuit Board Assembly (PCBA)
1.1 What Is a PCBA?

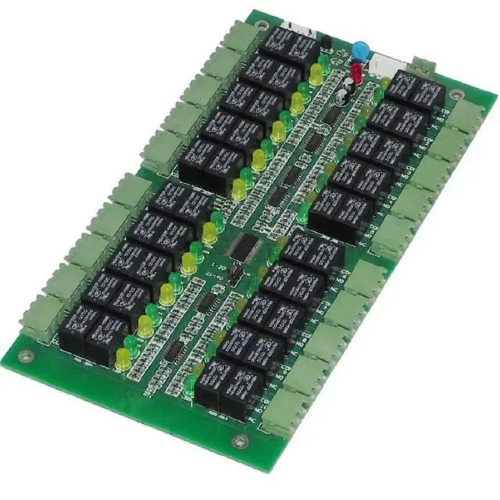

A printed circuit board assembly (PCBA) is created when electronic components are mounted and soldered onto a PCB, making it operational. Unlike a bare PCB, which only contains copper traces, vias, and substrate material, a PCBA is a functional circuit ready to be integrated into a product. PCBA not only provides electrical connectivity but also ensures mechanical stability for all mounted components.
1.2 Types of PCBA
Surface Mount Technology (SMT): Components are placed on the surface of the board using automated pick-and-place machines. SMT allows for high-density layouts, miniaturization, and faster production speed. It is suitable for complex boards with small footprints and fine-pitch components.
Through-Hole Technology (THT): Components with leads are inserted into drilled holes and soldered. THT provides mechanical strength and durability, often used for connectors, switches, or components that undergo mechanical stress.
Mixed Technology: Combines SMT and THT for complex boards requiring both dense surface placement and mechanical durability. This hybrid approach enables the assembly of versatile boards capable of meeting stringent industrial or consumer specifications.
1.3 Tools and Equipment Required for PCBA
Successful PCBA assembly relies on specialized equipment to maintain precision and efficiency:
Stencil printers for accurate solder paste deposition
Pick-and-place machines for fast, precise SMT component placement
Reflow ovens to create reliable solder joints through controlled thermal profiles
Wave soldering or selective soldering systems for THT assembly
Inspection tools including AOI (Automated Optical Inspection) and X-ray machines for hidden solder joints
Cleaning and coating equipment to ensure final board reliability and protection
2. Preparing for PCBA Assembly
2.1 Reviewing Design Files and BOM
Before starting assembly, engineers should thoroughly review Gerber files, BOM (Bill of Materials), and assembly drawings. This ensures that:
Component placement aligns with design specifications
PCB layer structures are suitable for both SMT and THT processes
All necessary components are available and correctly specified
Any design issues affecting manufacturability are identified early
2.2 Quality Checks for Incoming PCBs and Components
Bare PCBs are inspected for surface defects, warping, or incorrect trace patterns
Components are verified for correct specifications, including tolerance, footprint, and polarity
Moisture-sensitive devices (MSDs) are checked and properly stored to prevent soldering defects such as popcorn effect during reflow
2.3 Preparing the Assembly Environment
Electrostatic discharge (ESD) protection is critical to prevent component damage
Clean and controlled environments reduce contamination and improve soldering reliability
Preheat and calibrate all assembly equipment to ensure consistency and reproducibility
3. Applying Solder Paste to the PCB
3.1 Role of Solder Paste
Solder paste is a combination of solder particles and flux. It temporarily holds components in place and melts during reflow to form a solid solder joint. Proper paste application is essential to ensure connectivity, joint strength, and long-term reliability.
3.2 Step-by-Step Solder Paste Application
Position the PCB under a stencil that aligns with the pads
Spread solder paste evenly across the stencil openings using a squeegee
Remove the stencil carefully, leaving a precise amount of paste on each pad
Inspect paste deposition for consistency and volume
3.3 Common Defects and Prevention
Bridging: Excess solder between pads can create short circuits—controlled by stencil design and thickness
Insufficient Paste: Results in weak joints—prevented by adjusting printing pressure and paste viscosity
Misalignment: Occurs if the stencil or board shifts—mitigated with proper fixturing and inspection
4. Component Placement Process
4.1 Surface Mount Technology (SMT) Placement
Automated pick-and-place machines handle high-density components rapidly and accurately. Key considerations include:
Component orientation and polarity, especially for ICs and diodes
Precise placement tolerance to avoid tombstoning or misalignment
Handling sensitive components with care to avoid mechanical or electrostatic damage
4.2 Through-Hole Technology (THT) Placement
THT components are inserted manually or semi-automatically. Best practices include:
Ensuring leads are fully inserted and seated correctly
Proper soldering method selection: wave or selective soldering
Maintaining cleanliness to avoid oxidation or weak joints
4.3 Mixed Technology Assembly
Mixed assemblies require sequencing:
Complete SMT placement and reflow soldering
Insert THT components and perform wave or selective soldering
Conduct inspection and testing to verify all joints
5. Soldering Processes in PCBA
5.1 Reflow Soldering for SMT Components
Reflow soldering involves controlled heating stages:
Preheat: Gradually raises temperature to prevent thermal shock
Soak: Activates flux and evaporates volatiles
Reflow: Solder melts, creating strong, reliable joints
Cooling: Solidifies solder and reduces thermal stress
5.2 Wave Soldering for THT Components
Board passes over a molten solder wave for simultaneous soldering of all through-hole leads
Flux application ensures proper wetting and adhesion
Suitable for high-volume THT assembly
5.3 Manual Touch-Up Soldering
Applied when automated soldering is insufficient or rework is required
Ensures joints are free of defects such as bridges or cold solder
6. Inspection and Quality Control Steps
6.1 Visual and Automated Optical Inspection (AOI)
Detects missing, misaligned, or incorrectly oriented components
Identifies solder bridging, insufficient paste, or lifted pads
6.2 X-Ray Inspection (AXI)
Necessary for BGA, QFN, or other hidden solder joints
Provides non-destructive verification of internal solder integrity
6.3 Electrical and Functional Testing
In-Circuit Test (ICT): Checks connectivity, component values, and detects open/short faults
Functional Test (FCT): Simulates real-world conditions to ensure the board performs correctly
6.4 Process Documentation and Traceability
Detailed records for each step enable quality traceability
Supports corrective actions and regulatory compliance
7. Cleaning, Coating, and Final Assembly
7.1 Cleaning Flux Residues
Removes residues that could cause corrosion or electrical leakage
Ultrasonic or chemical cleaning ensures thorough removal
7.2 Conformal Coating and Protective Layers
Shields PCBA from moisture, dust, and environmental contaminants
Enhances long-term reliability, especially for industrial, automotive, and medical boards
7.3 Labeling, Packaging, and Shipping
Final inspection confirms functionality and visual quality
Barcodes, lot numbers, and protective packaging are applied
Boards are prepared for shipment or integration
8. Common Challenges in PCBA Assembly and How to Overcome Them
Challenge | Cause | Solution |
Solder bridges | Excess solder paste | Adjust stencil thickness, reflow profile, and inspection |
Cold joints | Insufficient heat or paste | Monitor oven profile and ensure proper solder volume |
Tombstoning | Uneven heating or small components | Optimize reflow profile and placement accuracy |
Component misalignment | Pick-and-place error | Regular calibration and verification |
Open circuits | Broken traces or leads | Conduct AOI inspection and targeted rework |
Proactively addressing these challenges minimizes defects and improves yield and product reliability.
9. Partnering with a Professional PCBA Manufacturer
Working with an experienced PCBA manufacturer brings significant benefits:
Expertise in SMT, THT, and mixed technology boards
Access to advanced assembly lines and inspection equipment
Turnkey services including PCB fabrication, component sourcing, assembly, testing, and packaging
Compliance with ISO 9001, IATF 16949, ISO 13485 standards
Professional guidance reduces production risks, shortens lead times, and ensures consistent quality across small and large production runs.
10. Conclusion
Assembling a printed circuit board assembly (PCBA) board is a complex process that requires precise execution at each stage—from solder paste deposition, component placement, reflow soldering, inspection, and functional testing. Attention to detail, rigorous quality control, and experienced technicians are critical to delivering reliable, high-performance electronics.
For companies or engineers aiming to produce high-quality PCBA boards, partnering with a professional provider like Shenzhen Xindachang Technology Co., Ltd. ensures your projects meet the highest standards. Their turnkey services cover PCB fabrication, component sourcing, assembly, testing, and final packaging, providing a complete solution for reliable and efficient PCBA production. Engaging with their team offers professional guidance, technical support, and assurance that your PCBA products perform to specification.
11. FAQs
Q1: What is the difference between PCB and PCBA?
A PCB is a bare board with copper traces and substrate, while PCBA includes all mounted and soldered components, ready to function.
Q2: What tools are needed for PCBA assembly?
Stencil printers, pick-and-place machines, reflow ovens, wave soldering systems, AOI and X-ray inspection tools, and test fixtures are commonly used.
Q3: How long does PCBA assembly take?
Prototype assembly may take 3–7 days, while full-scale production usually requires 10–20 days depending on complexity and quantity.
Q4: What are common defects in PCBA assembly?
Solder bridges, cold joints, misalignment, open circuits, and tombstoning are frequent defects, usually preventable with AOI, X-ray, and proper process control.
Q5: Can PCBA services include component sourcing?
Yes. Full-service PCBA manufacturers provide turnkey solutions covering fabrication, sourcing, assembly, testing, and packaging.
Q6: Why is quality control important in PCBA?
It ensures reliability, prevents field failures, maintains compliance with standards, and protects brand reputation.
