In-Depth Dissection of UWB Positioning: The Full-Process Principle from Signal Transmission to Precise Positioning
In the era of rapid digital and intelligent development, precise positioning technology has become an indispensable key support in numerous fields. Ultra-Wideband (UWB) positioning technology, with its unique advantages, is making a name for itself in applications such as indoor and outdoor positioning, asset tracking, and intelligent transportation. This article will conduct an in-depth dissection of UWB positioning, elaborating in detail on the full-process principle from signal transmission to precise positioning. Additionally, it will introduce XDCPCBA, a professional electronic service manufacturer specializing in PCB manufacturing and OEM services, which plays a crucial role in the hardware production of UWB positioning systems.
1. Overview of UWB Positioning Technology
UWB positioning technology, also known as ultra wideband location or ultra wideband positioning systems, is a positioning technology based on ultra-wideband wireless communication. Unlike traditional narrowband communication technologies, UWB utilizes nanosecond to microsecond-level non-sinusoidal narrow pulses to transmit data, occupying an extremely wide spectral bandwidth (typically greater than 500 MHz). As a result, it boasts characteristics such as high bandwidth, low power consumption, and strong anti-multipath capability. This enables UWB to excel in scenarios like UWB indoor positioning, UWB tracking (of personnel or assets), and UWB drone positioning, achieving centimeter-level positioning accuracy that far surpasses traditional Bluetooth and WiFi positioning technologies.
2. Components of a UWB Positioning System

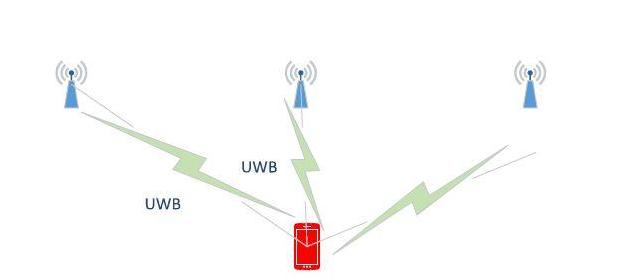

A complete UWB positioning system primarily consists of UWB base stations and positioning tags. Base stations serve as the infrastructure of the positioning system, responsible for receiving and transmitting UWB signals. Their layout and quantity directly impact the positioning range and accuracy. Generally, in scenarios such as UWB indoor navigation, base stations need to be reasonably deployed according to the spatial size and complexity to ensure that signals can cover the entire positioning area. Positioning tags, on the other hand, are installed on target objects requiring positioning, such as personnel, vehicles, and equipment. They are used to emit UWB signals and communicate with the base stations.
3. UWB Signal Transmission
3.1 Signal Generation Principle
The generation of UWB signals is based on impulse radio technology. In a UWB positioning system, the signal transmission module generates a series of extremely narrow pulse signals to transmit data and positioning information. These pulse signals typically have a width in the nanosecond range. Due to the extremely narrow pulse width, the signals exhibit ultra-wideband spectral characteristics in the frequency domain. For example, in a UWB 3D positioning system, the UWB signals emitted by the tags contain key information for determining the target's position in three-dimensional space.
3.2 Hardware Support
The normal operation of the UWB signal transmission module relies on high-quality circuit board support. As a professional PCB manufacturing company, XDCPCBA can provide top-notch PCB manufacturing services for UWB positioning systems. Equipped with advanced production equipment and exquisite process technology, XDCPCBA strictly controls every link from PCB design and fabrication to circuit manufacturing and PCB manufacturing assembly, ensuring the stable and reliable performance of the produced circuit boards. Whether it's a simple UWB tag circuit board or a complex base station circuit board, XDCPCBA can customize them according to customer requirements, offering a one-stop service ranging from PCB board cost核算 (cost estimation) to PCB board production.
4. UWB Signal Propagation and Reception
4.1 Signal Propagation Characteristics
During propagation, UWB signals, thanks to their ultra-wideband characteristics, possess strong penetration capability and anti-multipath interference ability. This allows UWB signals to maintain good signal quality even when passing through obstacles such as walls and furniture in complex indoor environments. Meanwhile, due to the extremely low power spectral density of UWB signals, they cause minimal interference to other wireless communication systems and can coexist with devices like Bluetooth and WiFi, providing a guarantee for the stable operation of UWB indoor localization and UWB localization systems.
4.2 Signal Reception and Processing
When UWB signals are transmitted to the base stations, the base stations' receiving modules receive and process the signals. The receiving module first performs preprocessing such as amplification and filtering on the signals to improve the signal-to-noise ratio. Then, it uses correlation algorithms to parse the signals and extract key information such as the arrival time and phase of the signals. This information will be used for subsequent positioning calculations to determine the target's position. In this process, the performance of the base stations' circuit boards plays a crucial role in signal reception and processing. The high-quality circuit boards produced by XDCPCBA can ensure that the base stations receive and process UWB signals stably and accurately, thereby improving the UWB positioning accuracy of the entire positioning system.
5. UWB Positioning Calculation Principles
5.1 Time-of-Flight (ToF)-Based Positioning Algorithm
The ToF algorithm is one of the most commonly used positioning algorithms in UWB positioning. Its basic principle is to calculate the distance between the UWB tag and the base station by measuring the time of flight of the UWB signal between them. Specifically, the tag emits a UWB signal, and the base station records the reception time. The tag also records the emission time. The time difference between the two, multiplied by the speed of light, gives the flight distance of the signal. By measuring the distances between the tag and multiple base stations and using trilateration or triangulation methods, the position of the tag in two-dimensional or three-dimensional space can be calculated, achieving UWB 3D positioning.
5.2 Time Difference of Arrival (TDoA) Algorithm
The TDoA algorithm calculates the target's position by measuring the time difference of arrival of UWB signals at different base stations. Unlike the ToF algorithm, the TDoA algorithm does not require strict time synchronization between the tag and the base stations; it only requires time synchronization among the base stations. This algorithm has certain advantages in large-scale UWB positioning systems, as it can reduce the system's cost and complexity while maintaining a certain level of UWB positioning accuracy.
6. Advantages and Application Scenarios of UWB Positioning
6.1 Technical Advantages
UWB positioning technology boasts numerous significant advantages. Firstly, it offers high precision, achieving centimeter-level positioning accuracy, which is difficult for other positioning technologies to match. Secondly, it has low power consumption. The extremely low emission power of UWB signals enables longer battery life for positioning tags, making it suitable for long-term UWB tracking scenarios. In addition, UWB's strong anti-interference ability and fast transmission speed also provide a guarantee for its application in various complex environments.
6.2 Application Scenarios
UWB positioning technology has a wide range of application scenarios. In the field of UWB indoor positioning, it can be applied in large shopping malls, airports, hospitals, and other places to provide users with precise navigation services. In the area of UWB tracking, it can real-time monitor the positions of valuable items and equipment to prevent loss. In UWB drone positioning, it can assist drones in achieving precise flight and operations in indoor or complex environments. Meanwhile, UWB positioning technology also has broad application prospects in industrial manufacturing, smart elderly care, sports events, and other fields.
7. Cost and Development Trends of UWB Positioning
7.1 Cost Analysis
The cost of a UWB positioning system mainly includes hardware equipment costs, deployment costs, and maintenance costs. In terms of hardware equipment, the prices of base stations and tags are the main cost components. Among them, the cost of circuit boards, as a core component, is also affected by factors such as PCB board cost and PCB manufacturing price. As a professional PCB supplier, XDCPCBA can provide customers with cost-effective circuit board products by optimizing production processes and achieving economies of scale, helping to reduce the hardware costs of UWB positioning systems.
7.2 Development Trends
With the continuous advancement of technology, UWB positioning technology will develop in the directions of higher precision, lower power consumption, and greater intelligence. At the same time, its integration with technologies such as 5G, the Internet of Things, and artificial intelligence will further expand the application fields of UWB positioning. In terms of hardware, there will be higher requirements for the performance and integration level of circuit boards. As a leading PCB fabrication service provider, XDCPCBA will continuously innovate and upgrade its technologies to provide better hardware support for the development of UWB positioning systems.
8. OEM Services of XDCPCBA Electronic Service Manufacturer
XDCPCBA not only excels in the field of PCB manufacturing companies but also provides professional OEM services. For UWB positioning system R&D enterprises, choosing XDCPCBA's OEM services allows them to focus on core technology R&D while entrusting production links such as circuit board manufacturing to a professional team. XDCPCBA offers a one-stop customized service ranging from PCB design and fabrication to PCB manufacturing assembly. Whether it's a simple PCB board maker requirement or a complex PCB manufacturing and assembly project, XDCPCBA can produce high-quality circuit board products that meet the standards according to customers' technical requirements, facilitating the rapid R&D and industrial application of UWB positioning systems.
In conclusion, UWB positioning technology, with its unique principles and advantages, shows great application potential in numerous fields. As a professional PCB company and circuit manufacturing service provider, XDCPCBA Electronic Service Manufacturer provides a solid hardware foundation for the development of UWB positioning systems by offering high-quality circuit board products and OEM services. With the continuous development and innovation of technology, UWB positioning technology and related industries are bound to embrace broader development prospects.
