Protection secrets in PCBA manufacturing: Conformal coating process guide
In the PCBA (printed circuit board assembly) manufacturing process, the conformal coating process is a crucial protective measure. It not only enhances the durability of the circuit board, but also significantly improves the reliability and service life of the product. The following is a detailed guide to the conformal coating process to help manufacturers optimize production processes and improve product quality.
1. The role of conformal coating
Conformal coating, that is, moisture-proof, salt spray-proof, and mildew-proof paint, is mainly used to protect circuit boards from harsh environments. It can form a protective film on the surface of the circuit, effectively isolating harmful factors such as moisture, dust, and salt spray, thereby extending the life of the circuit board.
2. Preparation before coating
Cleaning the circuit board: Make sure that there is no oil, dust, and impurities on the surface of the circuit board, otherwise it will affect the adhesion and protective effect of the conformal coating.
Choose the right conformal coating: Choose the right type of conformal coating according to the working environment, temperature resistance requirements, and cost budget of the circuit board.
Pretreatment: For circuit boards with some special requirements, pretreatment may be required, such as preheating, deoxidation, etc.
3. Coating process

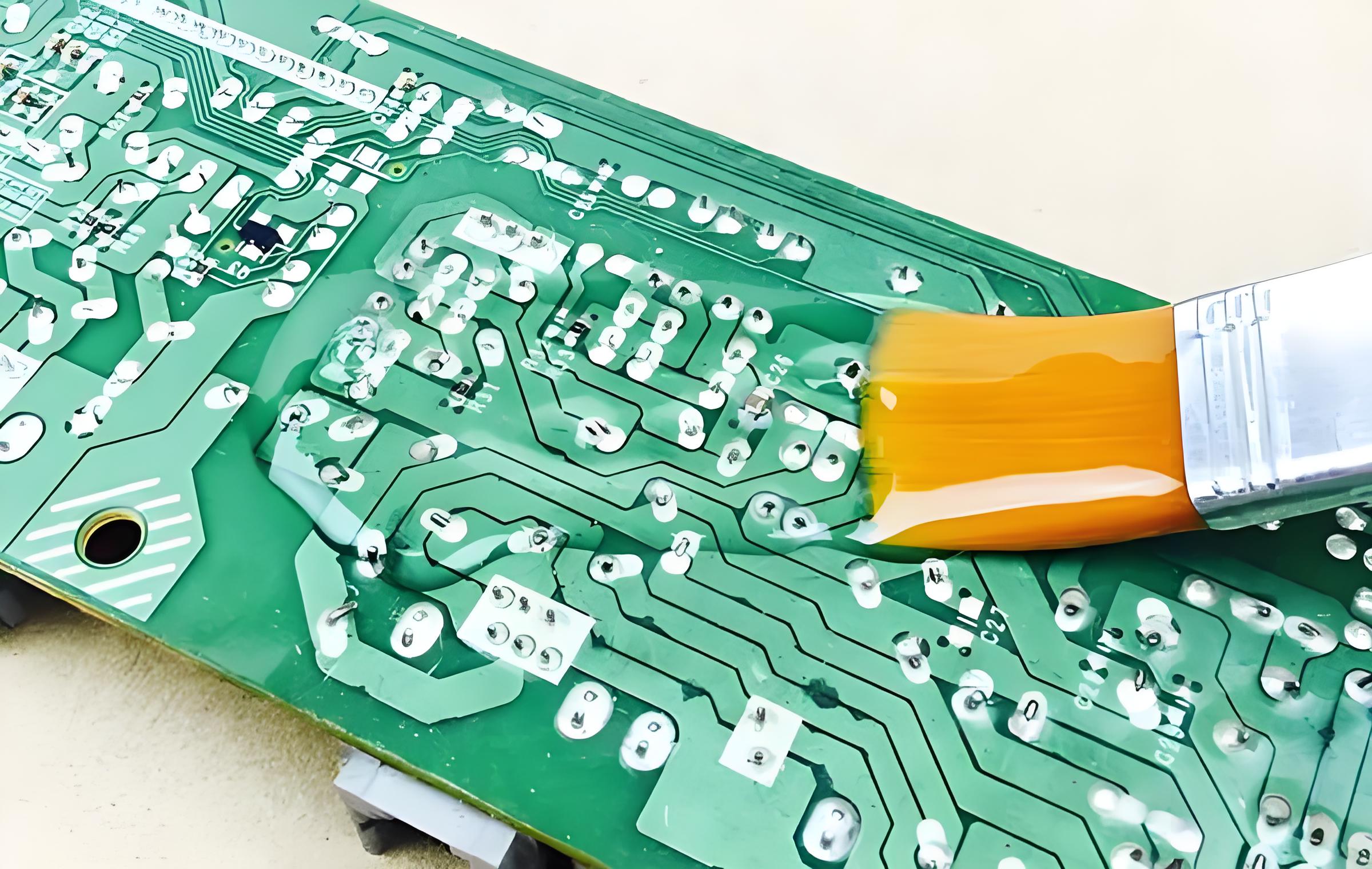

Manual coating: suitable for small batches and circuit boards with complex structures. Pay attention to uniformity during coating to avoid missing coating and accumulation.

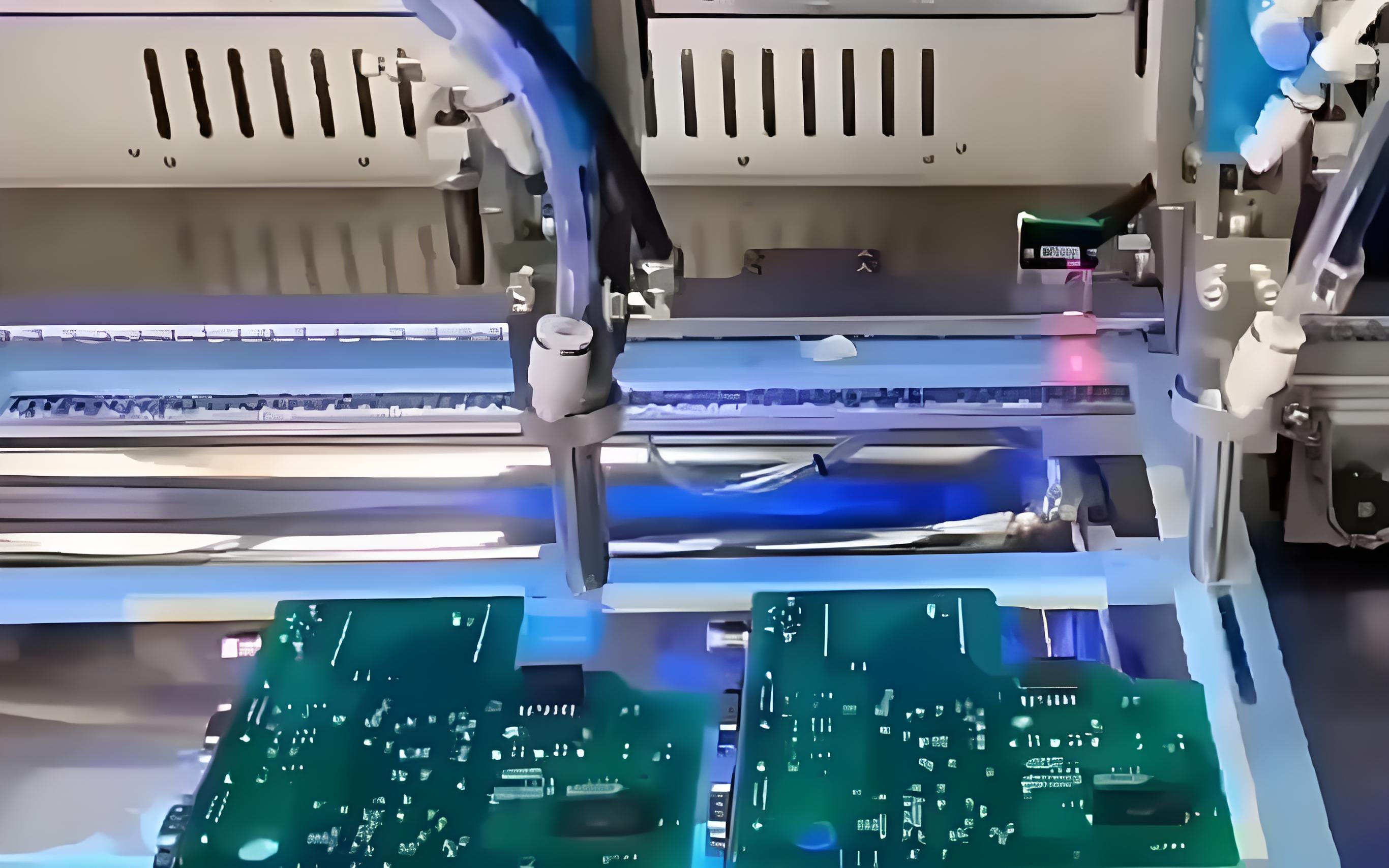

Machine coating: suitable for large-scale, standardized circuit boards. Common machine coating methods include spraying, dipping and brushing. Machine coating can significantly improve production efficiency and ensure coating quality.
Curing: After coating, the circuit board needs to be placed in an oven for curing. The curing temperature and time need to be adjusted according to the model and thickness of the three-conformal paint to ensure that the paint film is completely cured and achieve the best protective effect.
4. Precautions
Environmental control: During the coating process, the environment needs to be kept clean and dry to avoid the influence of dust and moisture on the coating quality.
Quality control: Regularly conduct quality inspections on the three-conformal paint to ensure that its performance meets production requirements. At the same time, the coated circuit boards are sampled to ensure the coating quality.
Safe operation: Three-conformal paint is mostly flammable and explosive substances. Safety regulations must be strictly followed during operation to prevent fire and explosion accidents.
5. Summary
The three-conformal paint coating process is an indispensable part of PCBA manufacturing. Through scientific and reasonable coating process, the protective performance of circuit boards can be significantly improved and the service life of products can be extended. Therefore, manufacturers should attach importance to the research and development and application of three-proof coating process, and continuously improve product quality and competitiveness.
