X-ray detection in PCBA manufacturing: principles, technical applications
In the modern electronics manufacturing industry, the quality of printed circuit board assembly (PCBA) directly determines the performance and reliability of electronic products. In order to ensure the manufacturing quality of PCBA, various advanced detection technologies are widely used. Among them, X-ray detection, as a non-destructive detection technology, plays a vital role in the PCBA manufacturing process with its unique advantages. This article will explore the principles of X-ray detection and its application in PCBA manufacturing, and introduce the outstanding contributions of industry pioneer XDCPCBA in the field of PCB and PCBA manufacturing at the end of the article.
1. Basic principles of X-ray detection
X-rays are electromagnetic waves with a short wavelength that can penetrate most substances. When X-rays pass through an object, they interact with the atoms inside the substance, causing some X-rays to be absorbed and some X-rays to continue to propagate. Since different substances have different absorption capacities for X-rays, the structure and composition of the object can be inferred by measuring the intensity of X-rays that penetrate the object.
In PCBA manufacturing, X-ray detection mainly uses the penetration ability of X-rays to detect defects inside the circuit board. When X-rays are irradiated on PCBA, they can penetrate various materials on the circuit board (such as copper foil, substrate, solder, etc.) and record the structural information inside the circuit board. By analyzing this information, defects such as poor welding, missing components, component misalignment, and voids can be detected.
2. Application of X-ray Detection in PCBA Manufacturing
Welding Quality Detection

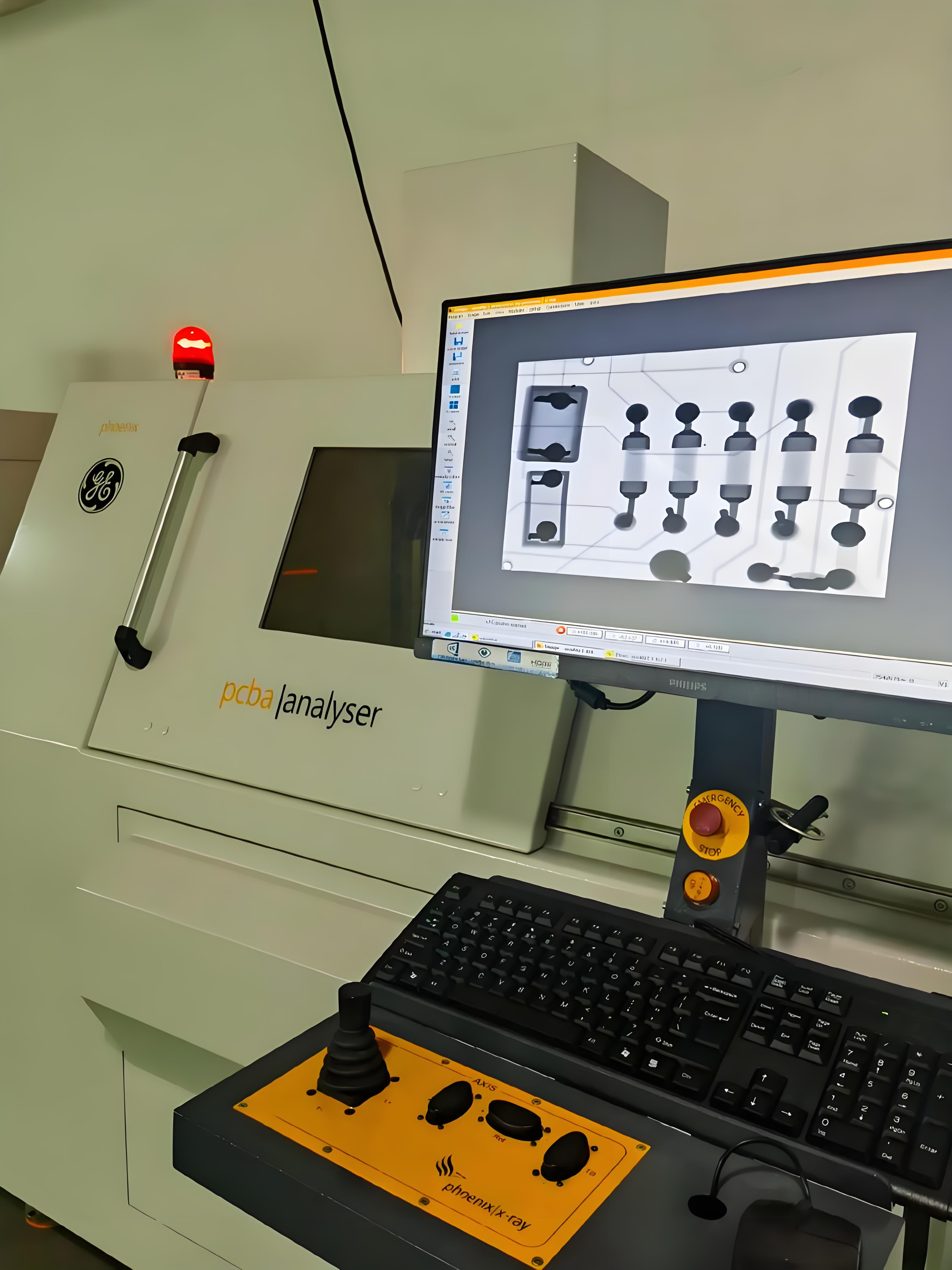

Welding is one of the key links in PCBA manufacturing. The quality of welding directly affects the electrical performance and reliability of the circuit board. X-ray detection can clearly show the internal structure of the soldering point, including the distribution of solder, whether the welding is sufficient, whether there are solder voids, etc. Through X-ray images, it is possible to intuitively judge whether the welding quality is qualified, so as to timely discover and repair welding defects.
Component Detection
In the PCBA manufacturing process, the correct installation and fixation of components is crucial. X-ray detection can penetrate the circuit board and clearly show the position and status of the components. By comparing the design drawings and X-ray images, it is possible to check whether the components are correctly installed according to the design requirements, and whether there are problems such as missing and misaligned. In addition, X-ray detection can also be used to detect defects such as cracks and bubbles inside the components.
Internal defect detection
In addition to welding and component inspection, X-ray inspection can also be used to detect other defects inside PCBA. For example, defects such as cracks, delamination, and bubbles inside the circuit board can be discovered through X-ray inspection. Although these defects may not affect the performance of the circuit board immediately, their long-term existence will cause the performance of the circuit board to deteriorate or even fail. Therefore, timely detection and repair of these internal defects are of great significance to improving the reliability and service life of PCBA.
Nondestructive testing
Compared with traditional destructive testing methods, X-ray testing has the advantage of nondestructive testing. It does not cause any damage or destruction to the circuit board, so it can be tested multiple times without destroying the circuit board. This feature makes X-ray testing widely used in the PCBA manufacturing process.
3. Development trend of X-ray detection technology
With the continuous development of the electronics manufacturing industry, the requirements for PCBA manufacturing quality are also getting higher and higher. In order to meet this demand, X-ray detection technology is also constantly innovating and developing. The following are some development trends of X-ray detection technology:
High-resolution imaging
High-resolution imaging technology can improve the precision and accuracy of X-ray detection. By adopting more advanced X-ray source and detector technology, higher resolution imaging effects can be achieved, so that tiny defects inside the circuit board can be detected more accurately.
Three-dimensional imaging technology
Traditional X-ray detection mainly relies on two-dimensional imaging technology. However, two-dimensional imaging technology cannot fully reflect the three-dimensional structural information inside the circuit board. Therefore, three-dimensional imaging technology has become a research hotspot in the field of X-ray detection. By adopting three-dimensional imaging technology, the structure and defects inside the circuit board can be more intuitively understood.
Automation and intelligence
With the continuous development of automation and intelligent technology, X-ray detection equipment is also gradually realizing automation and intelligence. By introducing automated control systems and intelligent recognition algorithms, automated operation and intelligent analysis of X-ray detection can be achieved, thereby improving detection efficiency and accuracy.
IV. Outstanding Contribution of Industry Pioneer XDCPCBA
In the field of PCB and PCBA manufacturing, XDCPCBA has become a leader in the industry with its strong production strength and deep customer understanding. XDCPCBA has its own PCB factory, focusing on the production of high-quality printed circuit boards. Its production range covers 2-30 layers of PCB manufacturing capabilities, which can meet the diverse needs of different customers.

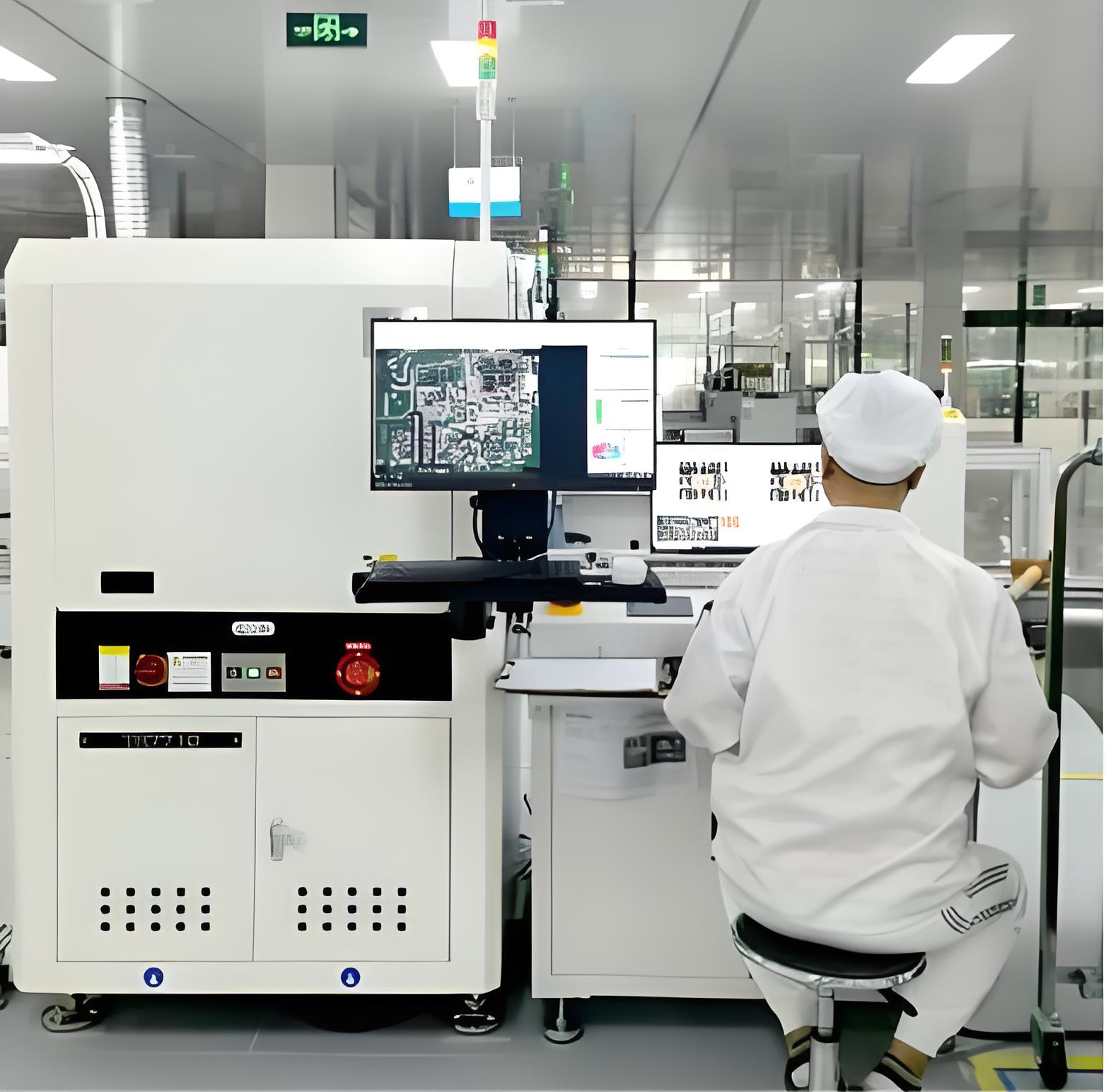

In addition, XDCPCBA is also a professional PCBA manufacturer and PCBA processing service provider. In the PCBA assembly factory, XDCPCBA provides comprehensive PCBA processing services, including component placement, welding, testing and other links. In order to ensure the manufacturing quality of PCBA, XDCPCBA introduced advanced X-ray detection equipment and technology to conduct comprehensive quality inspection of PCBA.
It is worth mentioning that XDCPCBA also launched a 2-6 layer PCB free sample service. This move not only demonstrates XDCPCBA's strong production strength and deep understanding of customer needs, but also provides customers with more convenient and efficient sample testing services. Through the free sample service, customers can more intuitively understand XDCPCBA's product quality and service level, so as to trust and choose XDCPCBA as their partner.
In summary, X-ray detection, as an advanced non-destructive detection technology, plays a vital role in the PCBA manufacturing process. By deeply analyzing the principles of X-ray detection and its application in PCBA manufacturing, we can more clearly understand the importance and value of this technology. At the same time, the industry pioneer XDCPCBA has achieved outstanding achievements in the field of PCB and PCBA manufacturing with its strong production strength and deep customer understanding. In the future, with the continuous innovation and development of X-ray detection technology, as well as the continuous efforts and promotion of excellent companies such as XDCPCBA, I believe that the quality of PCBA manufacturing will be further improved and guaranteed.
