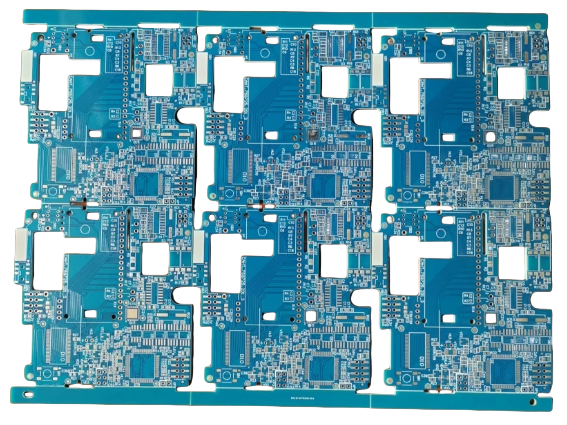

I. Product Overview
XDCPCBA specializes in providing custom 2-layer FR4 PCB circuit board solutions for the electric meter industry. Leveraging high-reliability substrates and precision manufacturing processes, we meet the stringent demands of smart meters, prepaid meters, three-phase meters, and more. Our PCB designs support high-speed signal transmission, low-power consumption, and long-term durability, enabling clients to shorten R&D cycles and enhance product competitiveness.
II. Core Advantages
High-Precision Manufacturing
Supports minimum 3mil/3mil trace width/spacing for precision routing.
Adopts TG135 FR4 substrate to enhance stability under high-temperature conditions.
Optimized laminate structure (signal layer + power layer + ground layer + signal layer) to reduce electromagnetic interference (EMI).
Stringent Quality Control
Complies with UL 94V-0 flame-retardant standards and RoHS environmental requirements throughout the production process.
Provides 100% electrical performance verification via flying probe testing, AOI inspection, and more.
Rapid Response
3–5 day rapid prototyping and 7–10 day mass production delivery.
One-stop service: From design review to final delivery, with comprehensive technical support.
III. Applications
Smart Meters: Supports integration of NB-IoT/LoRa wireless communication modules.
Three-Phase Meters: Optimized thermal design for high-power load scenarios.
Prepaid Meters: Anti-interference circuitry and tamper-proof structural design.
(Keywords: smart meter, three-phase meter, prepaid meter, NB-IoT, anti-interference design)
IV. Technical Specifications Table
Parameter Details
Layers 2-layer
Substrate FR4 TG135
Copper Thickness 1oz (customizable)
Surface Finish HASL (lead-free, RoHS-compliant)
Min. Trace Width/Spacing 3mil/3mil
Impedance Control ±10% accuracy (single-ended/differential)
Certifications UL 94V-0, RoHS, ISO9001
V. Why Choose Us?
Over 10 years of experience in electric meter PCB manufacturing, serving 50+ global meter enterprises.
Dedicated 1-on-1 engineer support with free PCB Design for Manufacturability (DFM) optimization.
Flexible order quantities: Supports small-batch trial production and mass orders.
