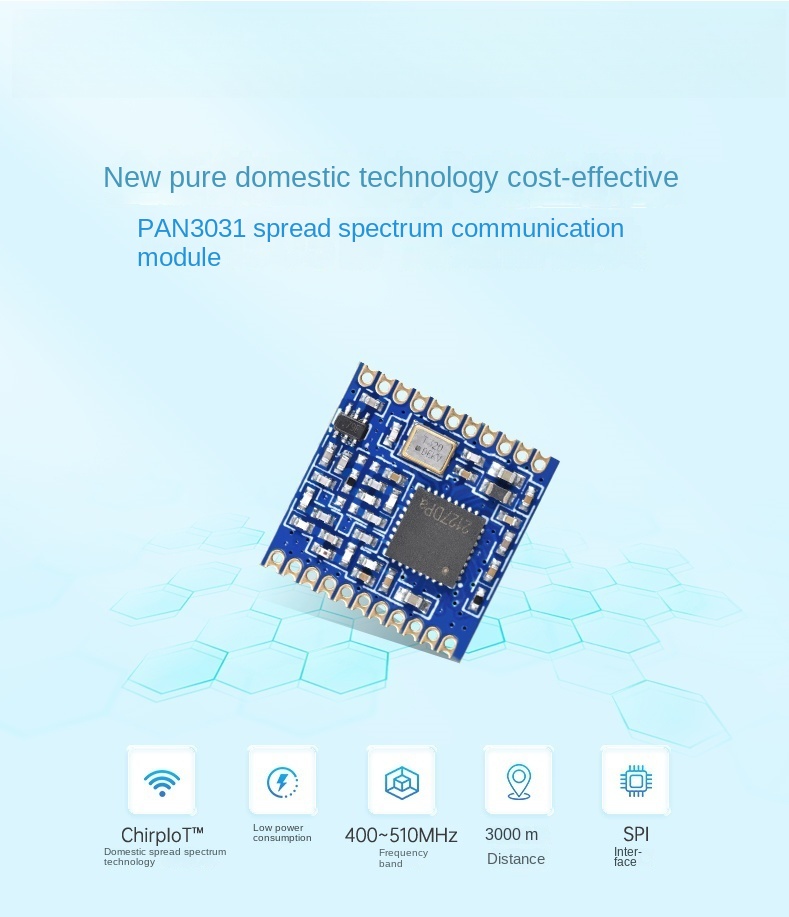

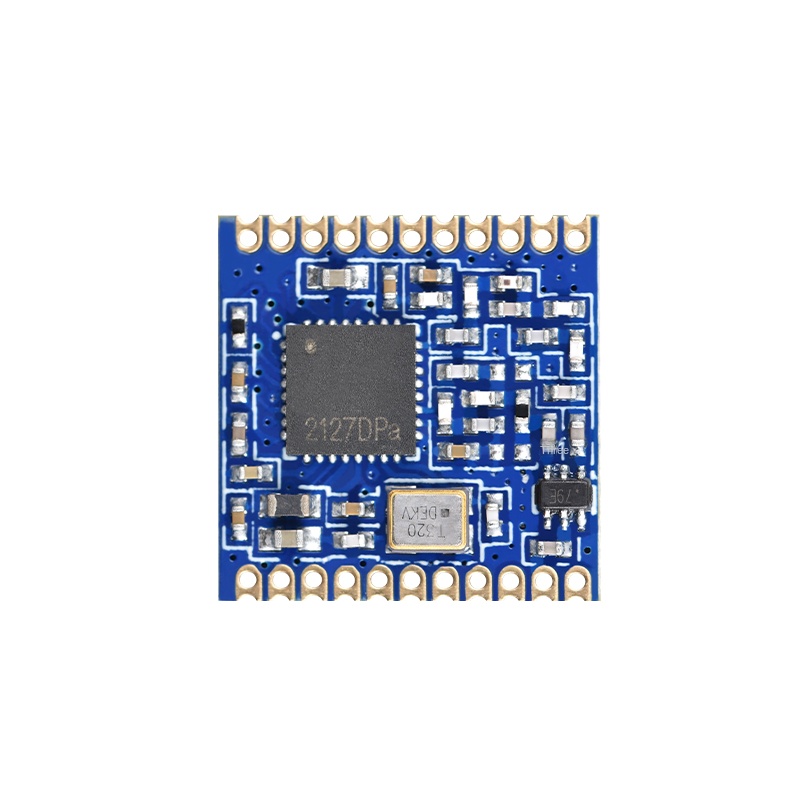

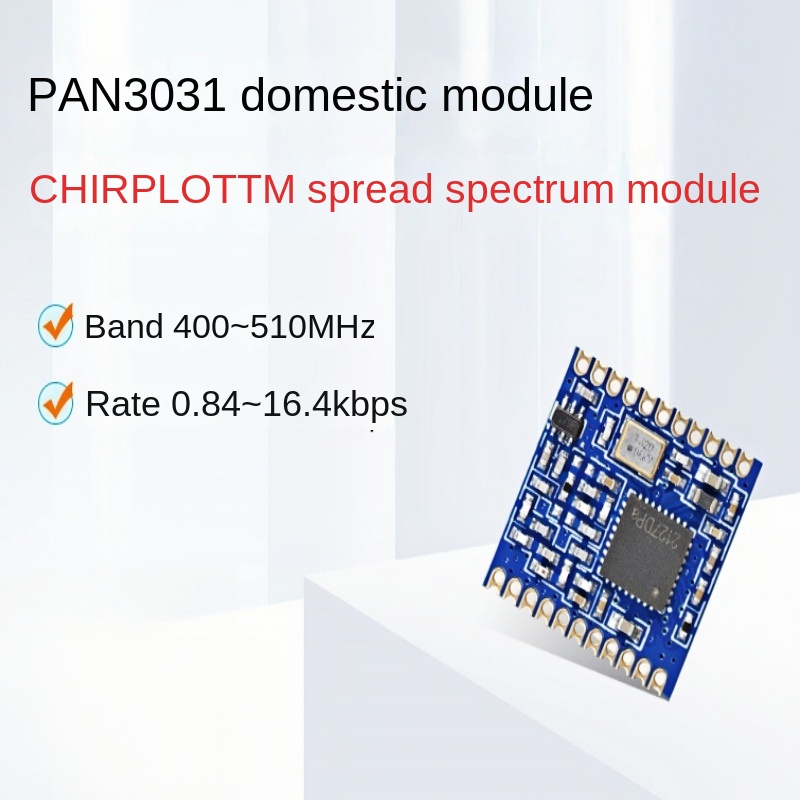

PAN3031 domestic LoRa wireless RF remote control module 433M micro inverter application compatible with SX1278

PAN3031 is a domestic high-performance 433MHz LoRa wireless RF remote control module, designed based on Semtech SX1278 chip, supports long-distance low-power communication, is compatible with SX1278 ecosystem, and is designed to provide cost-effective solutions for micro-inverters and industrial control fields. The following is a summary of its core application scenarios:

**1. Photovoltaic micro-inverter remote monitoring**
As a core component of the solar power generation system, the module can be connected to the micro-inverter through the RS485/UART interface to achieve real-time upload of power generation data, equipment status monitoring and remote parameter configuration. Supporting the LoRaWAN protocol, it can penetrate obstacles such as roofs and walls, and is suitable for centralized management of distributed photovoltaic power stations.

**2. Wireless control of industrial equipment**
Compatible with the transparent transmission mode of SX1278, it can replace traditional wired connections to realize wireless command interaction of PLC, inverter, motor and other equipment. Typical applications include factory automation production line control, crane remote operation, intelligent storage equipment scheduling, etc., especially suitable for complex environments with high dust and high electromagnetic interference.

**3. Smart agriculture and environmental monitoring**
Through the strong diffraction capability of the 433MHz frequency band, the module can wirelessly transmit data from farmland sensors, weather stations, and irrigation systems to the control center. Supporting low-power design of battery-powered devices, it is suitable for scenarios such as soil temperature and humidity monitoring in remote areas and smart greenhouse environmental control.

**4. Smart city and security**
Integrated in terminals such as smart meters, water meters, and street light controllers to achieve real-time reporting of device status and remote switch control. Multi-channel design supports large-scale deployment of urban infrastructure and reduces the wiring costs of community security and municipal management.

**5. Logistics and asset tracking**
With GPS modules or temperature and humidity sensors, the location and environmental parameters of goods are transmitted back to the monitoring platform in real time through a 433MHz link. Suitable for scenarios such as temperature and humidity monitoring of cold chain transportation, container tracking, and dynamic management of express parcels.

**Module advantages**:

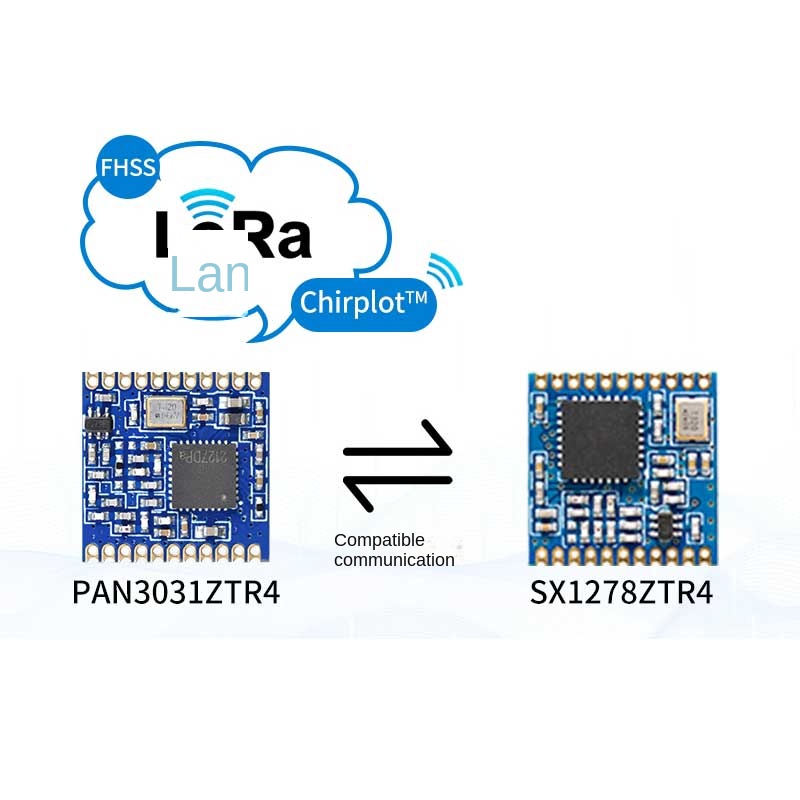

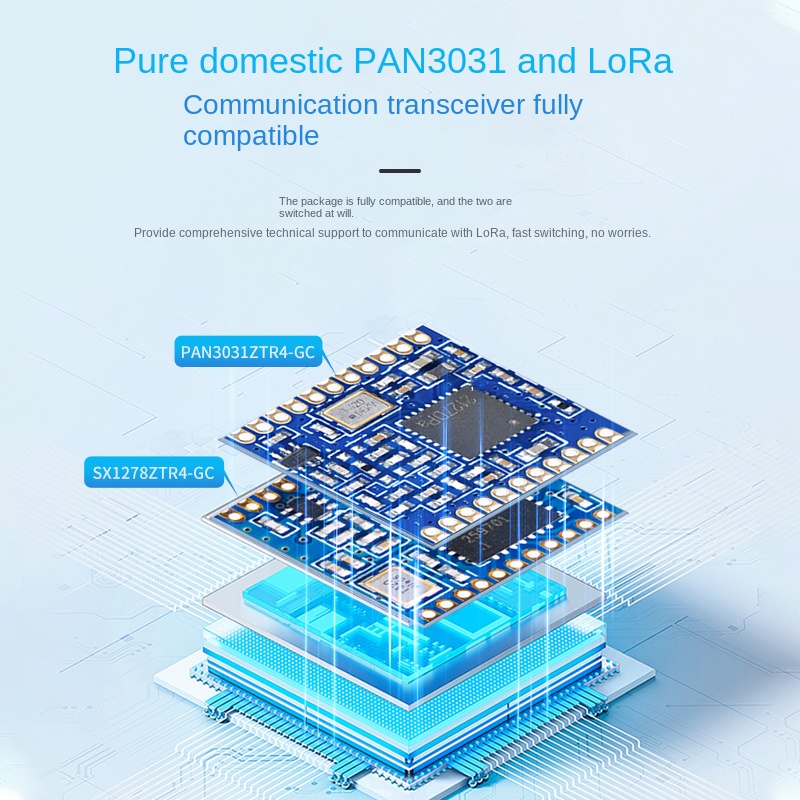

- **Compatibility**: Fully compatible with SX1278 chip, supports LoRaWAN protocol, and can be seamlessly connected to the existing LoRa ecosystem;

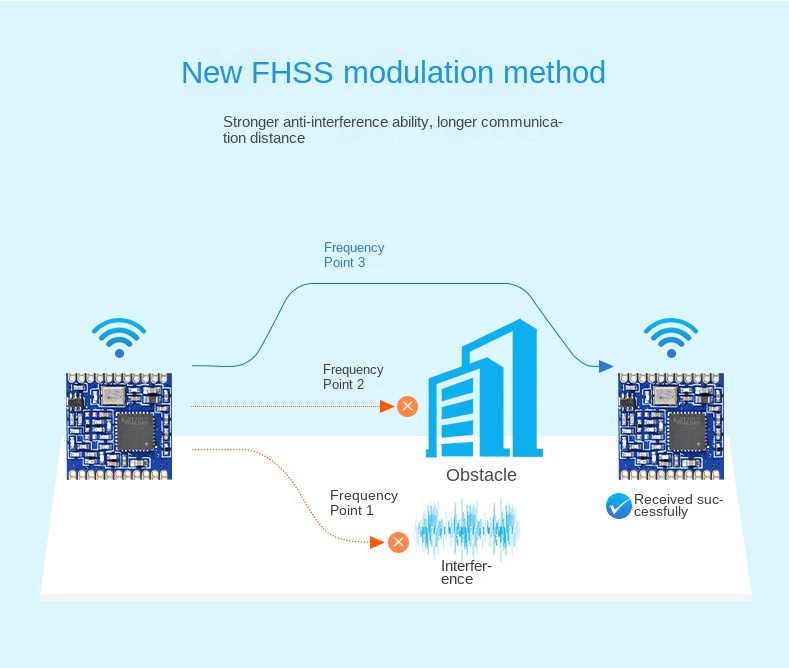

- **Long-distance transmission**: Line-of-sight transmission distance is up to 15 kilometers, 433MHz frequency band has strong anti-interference ability, and penetration is better than 2.4G;
- **Low-power design**: Sleep current <1μA, supports long-term power supply from solar energy/battery;
- **Flexible interface**: Built-in RS232/485 dual protocol conversion, adapting to standard interface of industrial equipment;
- **Localization support**: Provide Chinese development documents and technical support, in line with domestic wireless communication regulations.

This module is combined with SX1278 technology through localization customization, which significantly reduces the cost of wireless transformation in micro-inverters, industrial Internet of Things and other fields, and is an ideal choice for medium and long-distance, low-power wireless control.
