Introduction: The welding art of modern electronic manufacturing
In the precision motherboard of smart phones and in the core of new energy vehicle control systems, **0.02 mm welding accuracy** determines the reliable operation of hundreds of millions of devices. As the world's leading PCBA smart manufacturing expert, XDCPCBA will unveil the mystery of core welding technology for you-the intelligent game between reflow soldering and wave soldering, and take you to appreciate the precision art of modern electronic manufacturing.
I. Technical principles of time-space dialogue

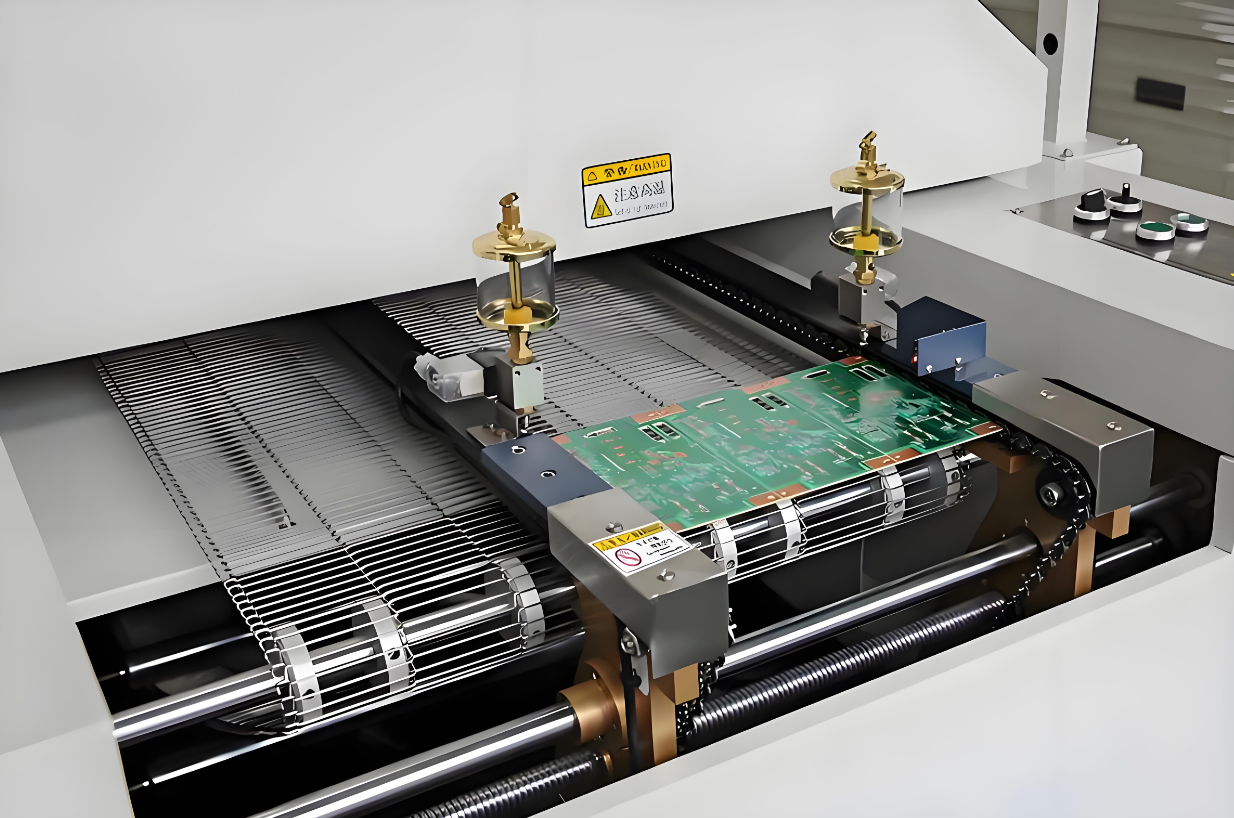

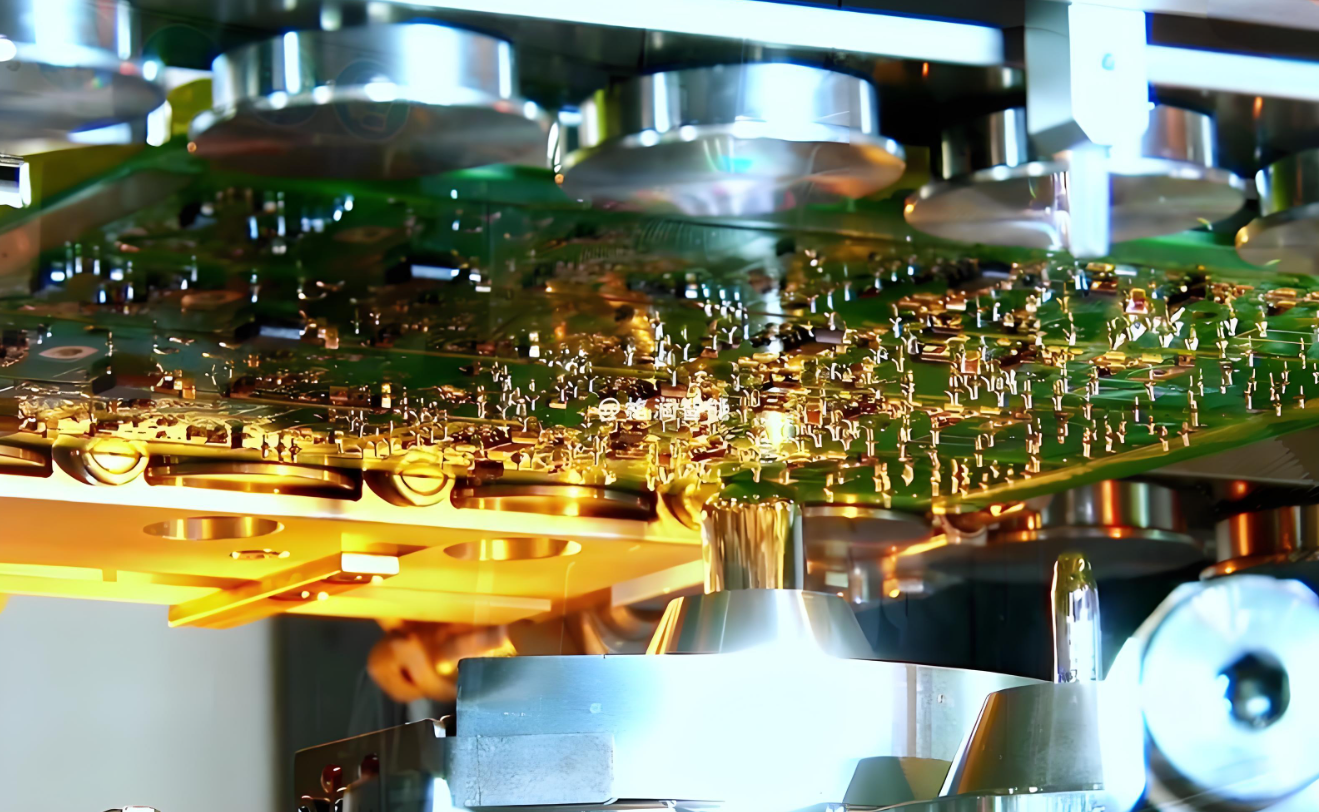

1. Reflow soldering: micron-level temperature concerto
- **Precision adjustment of hot air vortex**
Adopting a multi-temperature zone precision temperature control system (front zone → air conditioning zone → reflow zone → cooling zone), similar to the performance of a symphony orchestra, ensures the perfect metallurgical combination from 0402 package resistors to BGA chips. Our 8-temperature zone reflow oven can achieve a temperature control accuracy of ±1℃, and the solder joint yield rate reaches 99.99%.
- **Phase change aesthetics of solder paste**
Through precise phase change control of 63Sn/37Pb or SAC305 lead-free solder paste, the workpiece self-alignment effect is achieved in the adsorption window of 217-220℃. XDCPCBA uses Japan Senju solder paste to ensure 100% soldering reliability of 0.4mm pitch QFP devices.

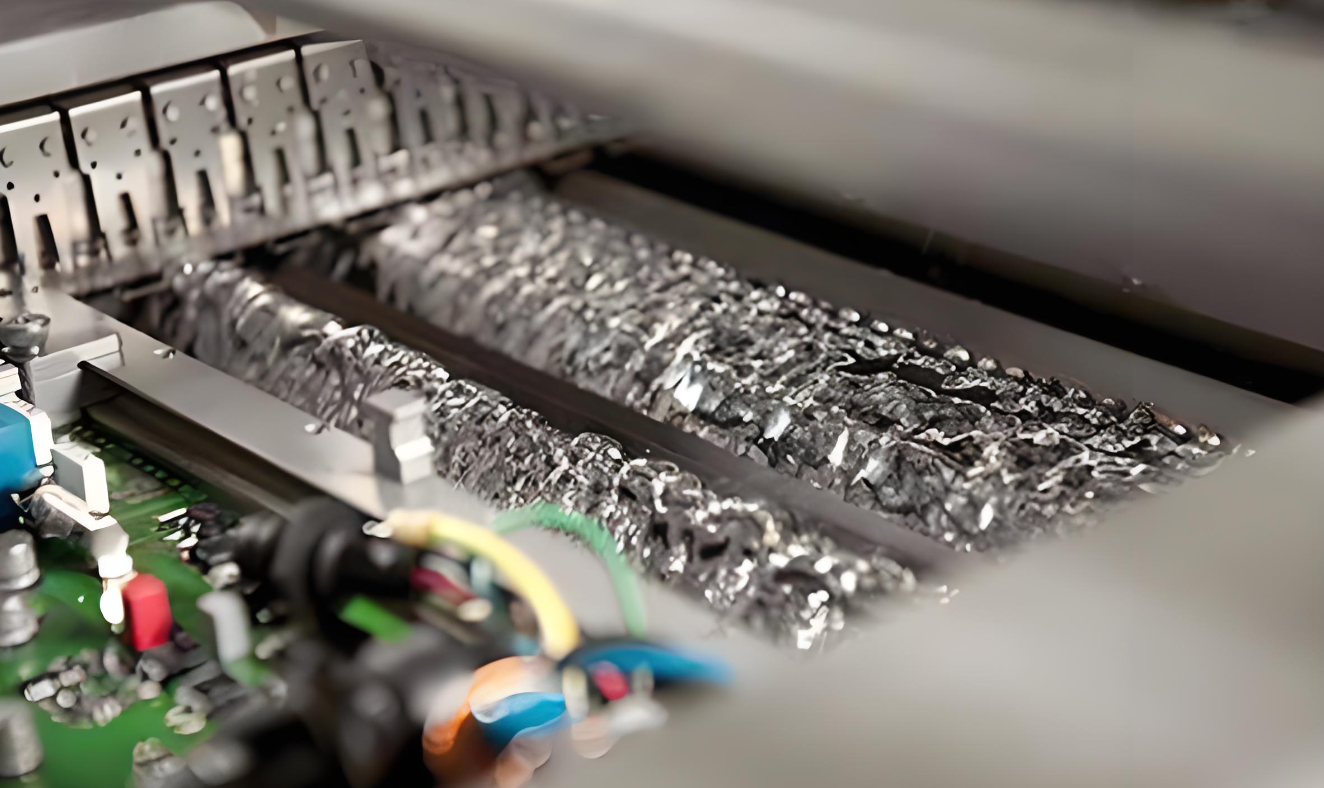

2. Wave soldering: the surging dance of methanol metal
- **Dual wave peak dynamic design**
The golden combination of sheet wave and main wave, the front wave breaks the oxide layer, and the rear wave completes the filling welding. Our selective wave soldering equipment is equipped with a 3D solder joint detection system, and the through-hole filling rate is >95%.
- **Industrial aesthetics of thermodynamics**
The solder tank maintains a dynamic balance of 255-265℃, and adopts a titanium alloy claw design to achieve stable welding at a chain speed of 1.2 meters per second. It is particularly suitable for the welding needs of high-current components such as automotive relays.
2. Application scenarios of the stars and the sea
1. The miniature world of reflow soldering (applicable scenarios)
- **Miniaturization battlefield**
01005 component welding of smart wearable devices, 0.3mm small CSP packaging of drone flight control boards
- **High temperature material application**
5G base station ceramic substrate welding, new energy vehicle SiC module power assembly
- **Special process requirements**
Bottom filling process, POP base welding
2. Industrial territory of wave soldering (scenario application)
- **High power devices**
Relays of electric vehicle charging station relays, IGBT module composition of industrial inverters
- **Special-shaped components**
Welding of through-hole components such as connectors, transformers, and large capacitors
- **Special key**
Soldering solutions for thick copper PCB (3oz+) and metal substrates
3. Six dimensions of process confrontation
| Comparison dimensions | Reflow soldering | Wave soldering |
|-----------------|------------------------------------------------|---------------------------------|
| Welding accuracy | ±0.1mm (can handle 01005 components) | ±0.5mm (suitable for components above 1206) |
| Thermal shock control | Intermediate (ΔT<3℃/s) | Instant contact (increased thermal shock) |
| Equipment investment | High-end equipment $500K+ | Standard equipment $150K+ |
| Material consumption cost | Solder paste $200-500/kg | Solder rod $10-20/kg |
| Process complexity | Steel mesh production, SPI testing required | Fixture development, wave peak debugging required |
| Environmental requirements | Consumption, VOCs emissions | Solder tobacco treatment, waste residue recycling |
IV. The integration of intelligent manufacturing
1. Hybrid assembly process (typical case)
**New energy vehicle VCU control board**
- Phase 1: SMT line completes reflow soldering of MCU, memory and other patch components
- Phase 2: Layout wave soldering to process through-hole components such as power connectors
- Phase 3: X-ray inspection + BGA rework station completes final inspection
2. Process selection decision tree
``Mermaid
Graphic TD
A[Part type] -->|SMD>70%| B (reflow soldering)
A -->|THT>30%| C{Board thickness}
C -->|>2.4mm| D[Wave soldering]
C -->|<1.6mm| E[Reflow soldering + soldering]
B --> F[High-density design verification]
D --> G[Fixture thermal simulation]
````
V. XDCPCBA's smart manufacturing practice
**Automotive electronics PCBA service provider** certified by IATF16949, we have built an automated soldering matrix:
- **Dual-track reflow soldering production line**: equipped with ERSA Versoflow 14 temperature zone reflow oven, supporting zero-defect soldering of automotive electronics
- **3D wave soldering system**: equipped with Kurtz Ersa Alpha 450 with selective wave soldering to meet the special needs of mixed boards
- **Welding big data platform**: real-time monitoring of 200+ process parameters, establishing welding quality prediction model
**Apply for 2-6 layer PCB free proofing now**, experience military-grade welding quality! Our team of engineers can provide you with:
✅ Welding process absorption analysis
✅ Thermal simulation report
✅ Step steel mesh design solution
✅ Welding quality inspection report
VI. Future welding technology prospects
- **Laser reflow soldering**: used for ultra-precision soldering such as MicroLED
- **Vacuum wave soldering**: solve the problem of high-density through-hole filling
- **AI soldering optimization system**: real-time dynamic adjustment of process parameters
**Keywords**: PCBA soldering technology Reflow soldering process Wave soldering system SMT patch processing THT plug-in soldering Automotive electronics PCBA high-density circuit board Soldering quality inspection Free PCB proofing XDCPCBA intelligent manufacturing
**Technical parameters**:
- Reflow soldering accuracy: ±0.05mm@3σ
- Wave soldering speed: 1.8m/min (maximum)
- Soldering yield: 99.95% (level 3 standard)
- Detection accuracy: 5μm X-Ray detection
