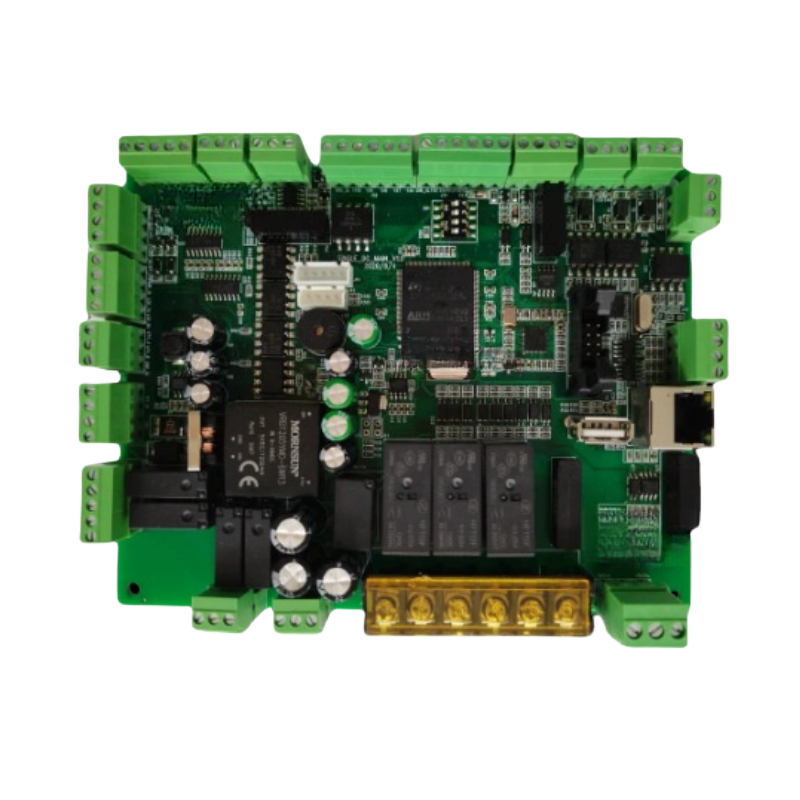

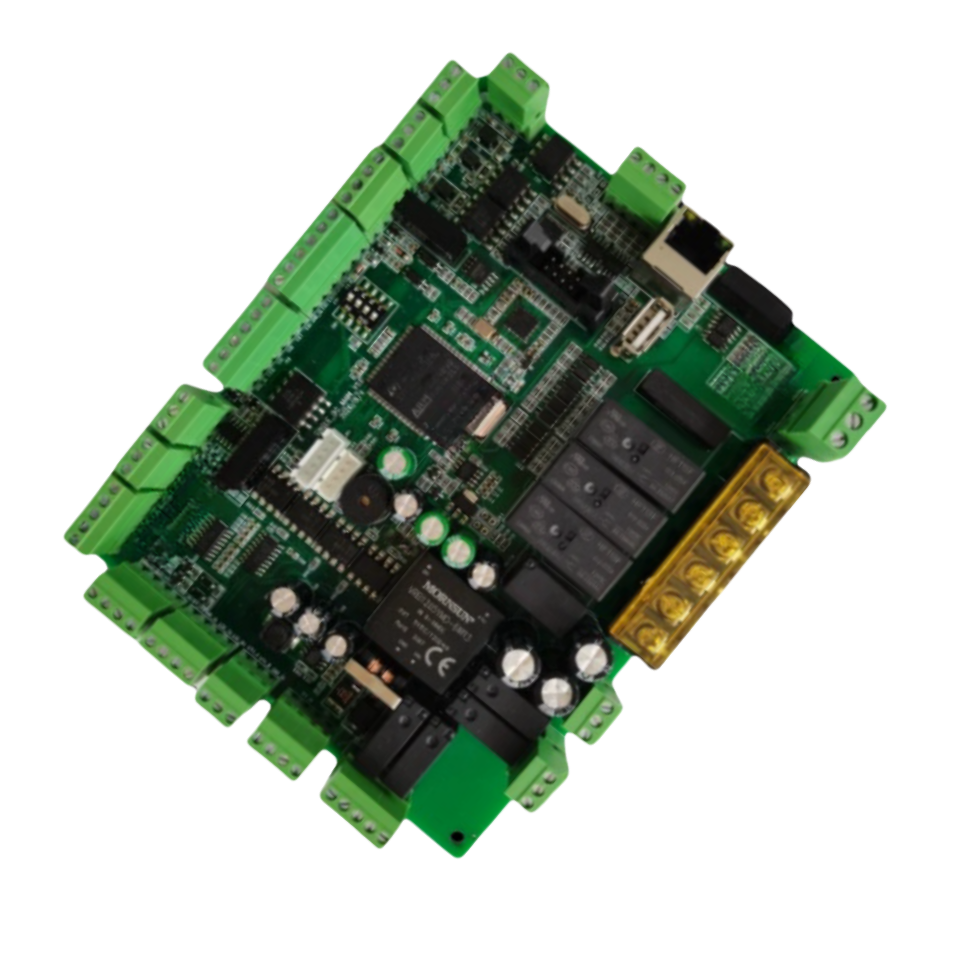

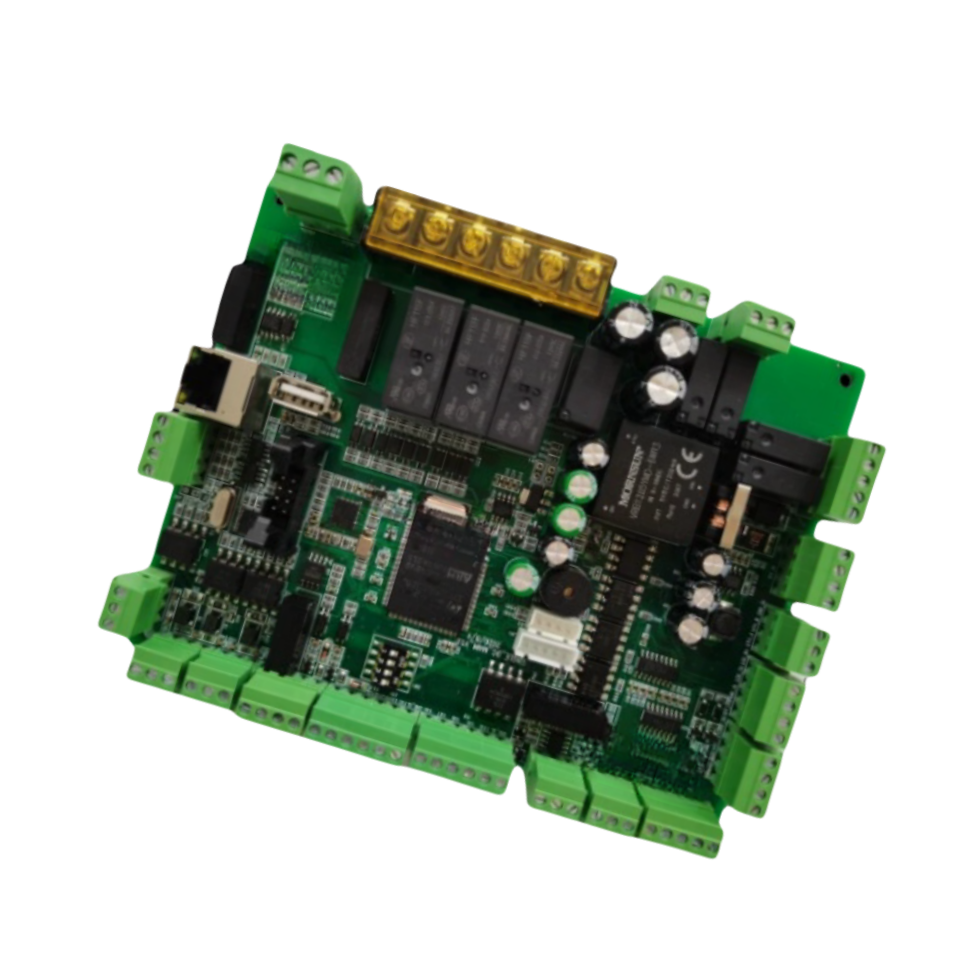

The PCB assembly and PCBA processing products of new energy electric vehicle charging piles are summarized as follows:
The PCBA of the new energy electric vehicle charging station integrates efficient charging control, intelligent communication, and multiple safety protection modules. Using high-quality electronic components and advanced surface mount technology to ensure stable charging power and high efficiency. The intelligent management function supports remote monitoring and multiple payment methods, enhancing the user experience. At the same time, it has multiple built-in protection mechanisms that can effectively prevent safety hazards such as overload and short circuit. The overall design is compact, with superior heat dissipation performance, suitable for households, residential areas, and commercial places, promoting green travel and sustainable energy development.
1、 Efficient and stable charging performance
Moderate output power: A 7KW output power will not cause excessive pressure on the power grid of households or private parking lots, and can also meet the daily charging needs of most new energy vehicle owners.
Fast charging speed: Generally, it takes 4-8 hours to fully charge the electric vehicle battery, greatly reducing the charging time and minimizing the waiting time for car owners.
Wide range of compatible vehicle models: As the maximum charging power device that can be achieved under single-phase 220V power supply, the 7KW charging pile can be widely used in various new energy vehicle brands and models equipped with AC charging interfaces (7 holes).
2、 High degree of intelligence
Intelligent control: supports WeChat mini programs APP、 Multiple user-friendly control methods such as card swiping make it convenient for customers to complete the charging process.
Intelligent management system: By incorporating an intelligent management system, it can automatically select the optimal charging time, predict future electricity demand, and seamlessly integrate with the smart grid to provide users with more convenient and efficient services.
3、 Excellent safety performance
Multiple protection mechanisms: equipped with overload protection, short circuit protection, overvoltage protection, undervoltage protection, grounding protection, over temperature protection, lightning protection, emergency stop protection, leakage protection and other multiple safety protection mechanisms, effectively resisting various potential risks and ensuring the safe and stable charging process.
High quality materials: The casing has a high level of protection (such as IP54, IP55, IP65, etc.), which can withstand the effects of harsh weather and environmental conditions, ensuring the normal operation of the equipment in different weather conditions.
4、 Strong economic practicality
Easy installation: Compared to charging piles with higher power, 7KW charging piles do not require large-scale modifications to the household or parking lot power system, and the construction cost is relatively low. When applying for a 220V electricity meter, it is usually only necessary to ensure that the parking conditions meet the requirements. The property management usually does not set too many obstacles, and the installation process is relatively smooth.
Low maintenance cost: The security performance during subsequent use is not inferior, and there is no need to worry about high maintenance costs.
Versatile usage scenarios: Suitable for installation and use in various scenarios such as home garages, residential parking spaces, commercial parking lots, enterprises, campuses, industrial parks, shopping malls, etc.
5、 Significant environmental benefits
Green energy: Charging with clean energy can help reduce carbon emissions and environmental pollution, in line with the concept of green travel.
Optimizing power grid resources: Charging during the low electricity price period at night not only saves money, but also optimizes power grid resources and reduces peak electricity pressure.
In summary, the 7KW new energy electric vehicle charging pile PCB assembly and PCBA processing products have the characteristics of efficient and stable charging performance, high intelligence, excellent safety performance, strong economic practicality, and significant environmental benefits. These characteristics make 7KW charging piles the preferred charging equipment for many household users and small and medium-sized parking lot operators.
