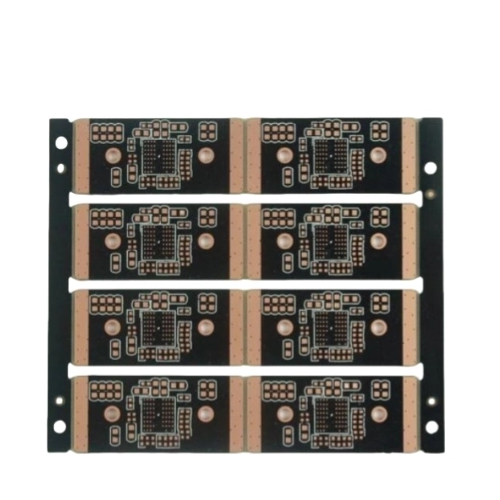

Copper-based double-sided PCB assembly

Copper-based double-sided PCB is a circuit board that combines a copper substrate and a double-sided wiring design, which is particularly suitable for applications with high power density. It has excellent thermal conductivity, can quickly conduct the heat generated by electronic components to the external environment, ensure the temperature control and stability of electronic equipment, and is widely used in LED lighting, power management and automotive electronics.

XDCPCBA assembly solutions and customization business:
XDCPCBA provides complete copper-based double-sided PCB assembly services, including circuit design optimization, component procurement, precision welding, functional testing and strict quality control. We provide customers with customized solutions to ensure that each PCB can be designed according to specific needs, especially providing solutions for power management and heat dissipation requirements. Whether it is a small batch trial production or large-scale production, XDCPCBA can ensure high-quality and high-reliability product delivery.

Availability:

Quantity:



Inquire Add to Basket

Copper materials are excellent thermal conductors, so they can dissipate heat effectively and are suitable for high-power and high-temperature applications. Copper-based materials can withstand harsh working conditions and improve the durability and service life of equipment. Copper provides excellent conductivity, reduces signal attenuation, and is suitable for high-frequency and high-speed circuits.

Copper-based double-sided PCBs have high mechanical strength, can withstand physical shock and pressure, and are suitable for various environments. It can integrate a variety of electronic components to meet complex functional requirements.

Due to effective thermal conductivity, copper-based double-sided PCBs can effectively handle heat in high-power applications, reduce component temperature, and increase reliability. Double-sided layout allows more components to be laid out in a smaller space, suitable for space-constrained product design.

Widely used in LED lamps, due to its excellent heat dissipation ability, it can extend the service life of LEDs. Used in vehicle control systems, sensors and other high-power applications to adapt to vehicle working environments

Used in equipment such as motorcycle controls, inverters, power amplifiers, etc., it can effectively handle large amounts of heat.

In radio frequency (RF) and microwave applications, the high conductivity of copper-based double-sided PCBs ensures excellent signal transmission characteristics.

Used in smartphones, tablets and other portable electronic devices for battery management and PCB design.

Parameter	Description
Substrate Material	Copper-based (Copper substrate), typically aluminum or copper core
Copper Thickness	Common thicknesses are 1oz, 2oz, 3oz; typically 1oz (35µm), 2oz (70µm), 3oz (105µm)
Board Thickness	Common thickness ranges from 0.8mm to 2.0mm, customizable as needed
Surface Treatment	Common surface treatments include Gold Plating, HASL (Hot Air Solder Leveling), OSP (Organic Solderability Preservative)
Minimum Trace Width/Spacing	0.1mm (4mil) - 0.15mm (6mil), depending on design and manufacturing process
Layer Count	Double-sided (2 layers) PCB (Front & Back layers)
Maximum Size	Typically up to 450mm x 350mm, customizable up to 500mm x 600mm depending on equipment
Minimum Hole Size	0.2mm (8mil) - 0.3mm (12mil), varies depending on manufacturing capabilities
Current Carrying Capacity	1oz copper can carry approximately 1A, 2oz copper can carry about 2A, 3oz copper can carry about 3A
Impedance Control	Common PCB impedance control is 50Ω ±10% (for signal and power lines)
Insulation Material	Typically FR4 (fiberglass epoxy resin) or specialized materials such as ceramics, depending on temperature, frequency, and mechanical requirements
Temperature Rating	Typically 120°C (UL94V-0 standard), high-temperature applications may require higher ratings such as 180°C or 200°C
Thermal Conductivity of Copper Core	Thermal conductivity typically ranges from 1.0W/m·K to 2.0W/m·K, depending on the copper base material chosen
Copper Electroplating	Copper plating thickness can range from 35µm to 105µm depending on the design and application
Electrical Performance	Low resistance, low loss, suitable for high-frequency and high-speed signal transmission applications
Surface Finish	Smooth, flat surface for better soldering and reduced signal loss and electromagnetic interference
